STAGE 1 MUD CLUTCH KIT

28" - 29" TIRES.



- Big tire kit for mud/skeg use!

- Help to transfer the engine power and torque better to the tires.

- Makes up the power loss and slow response of using big tires.

- Better low end power and torque to get heavy tires turn in the mud.

- Reduced belt slip and heat.

Product code: CANSM1

JAY PARTS: 340591

Included in the kit:

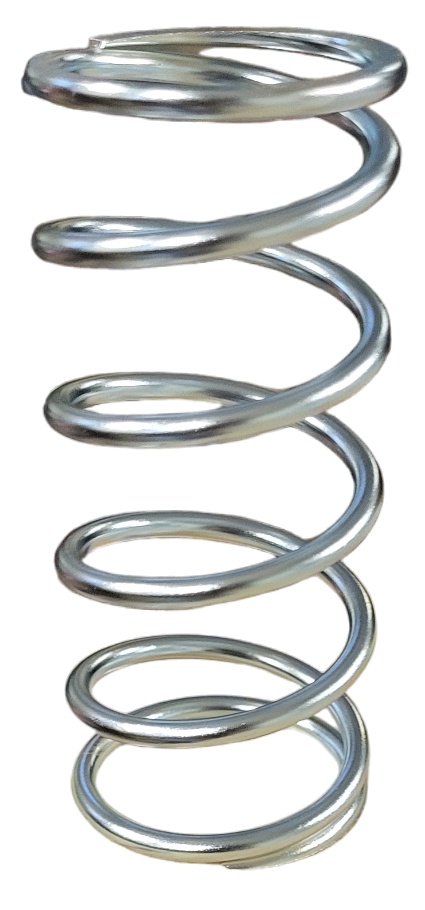

- Silver/Black primary spring

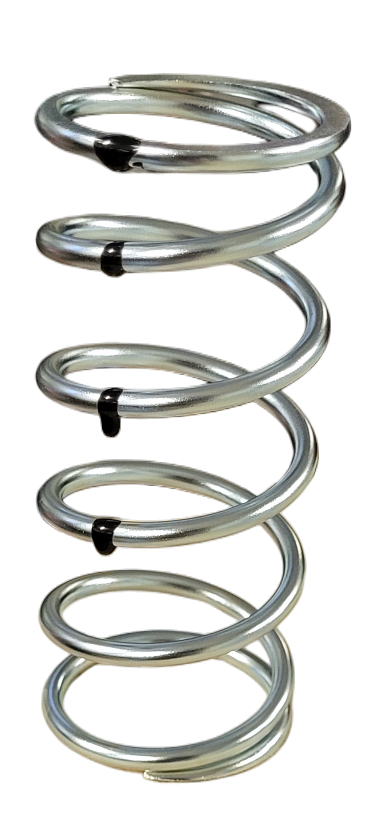

- Stage 2 secondary spring



Why bigger tires demand a clutch kit?



1. Bigger tires are heavier

Heavier rotating mass = more force required to get them moving. The stock clutch tries to pull too tall a “gear,” which causes:

Sluggish takeoff

Poor throttle response

Engine working harder than it should



2. Larger diameter changes your gearing

When the tire gets taller, your final drive ratio becomes longer. The engine now has to work in a lower RPM range than it was designed for.

A clutch kit brings the RPM back into the engine’s powerband, where the Rotax actually makes torque.



3. Protects your belt

This is the big one.

Without proper clutching, the belt slips more because:

The primary clutch engages too early

The secondary doesn’t backshift fast enough

The engine can’t reach the correct RPM

Result: belt heat, glazing, premature wear, and eventually belt failure.

A good clutch kit reduces belt slip dramatically.



4. Restores acceleration and low‑end torque

Bigger tires kill low‑end grunt. A clutch kit compensates by:

Adjusting flyweight mass

Changing spring rates

Improving backshift response

This gives you the “snap” back when you hit the throttle.
